Tech Specs Table

ITEMS		L8M
Image Sensor	Sensor Type	High Definition Color CMOS Sensor
	Display Resolution	8.0Megapixels(3840*2160)
	Min. Illumination	0 Lux (With IR Illuminator)
Lens	Lens Type	f.2.8mm; F1.6
	Angle of view	Diagonal:124.5°, Horizontal: 108°, Vertical: 59.8°
Video	Image Compression	H.264+/H.264
	Image Frame Rate	Max 25fps (8MP), downward adjustable
	Resolution	4K(38402160) 2M/20 fps,1080P(19201080)1M/20fps, 720P(1280*720)1M/15fps
	Stream	Dual stream
	Image Adjustment	The hue, brightness, contrast, saturation and sharpness are adjustable
	Flip image	Flip and mirror
	Infrared Mode	Automatic and manual

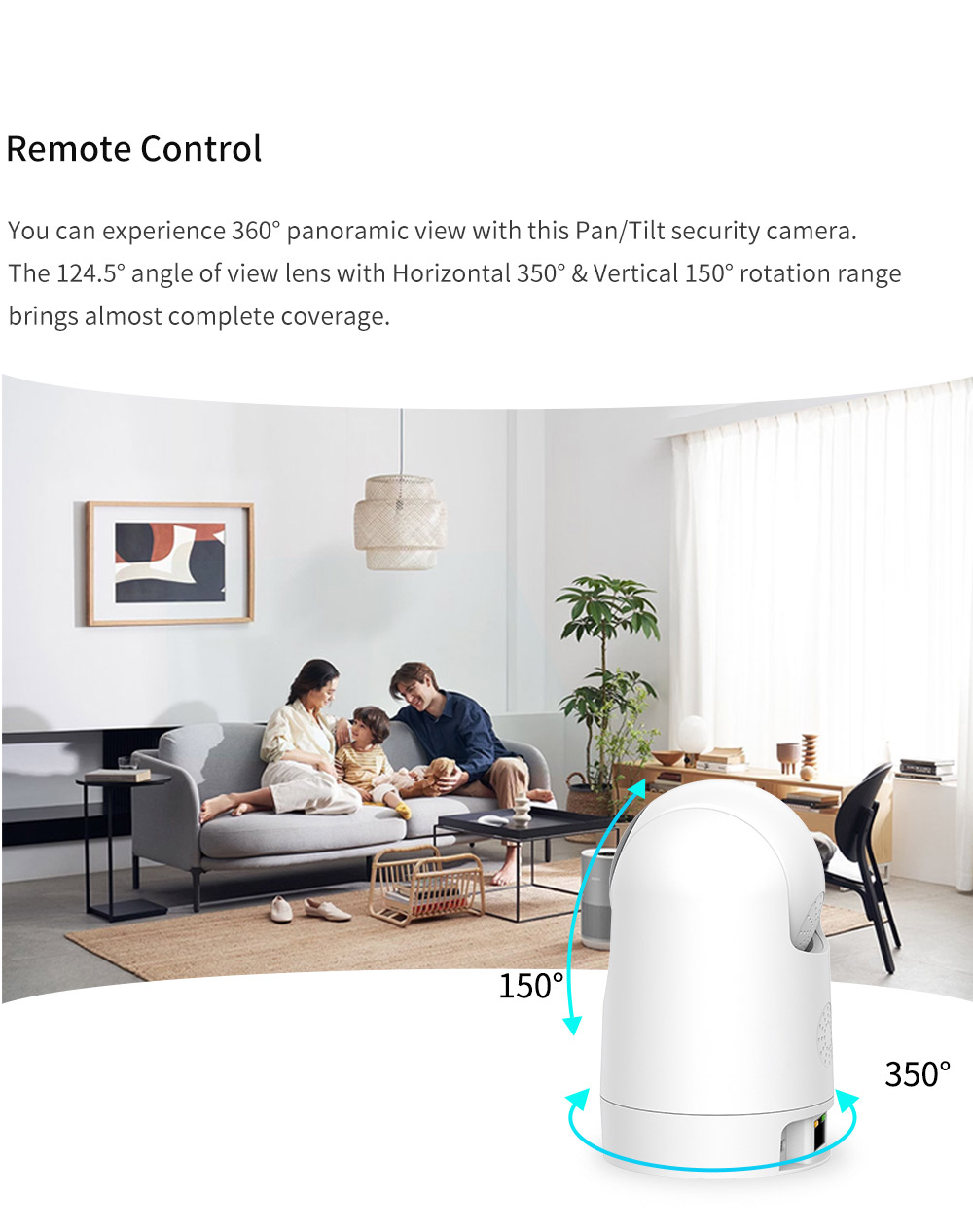

	Pan/Tilt Angle	Pan:350° / Tilt:150°
	Night Visibility	8pcs IR-LEDs, night vision range up to 8 metres
Audio	Input/Output	Built-in mic and speaker, supports full duplex 2-way Audio
	Audio Compression	PCM/AAC
	Siren	Supports maximum 100dB alarm siren
Network	Ethernet	One 10/100Mbps RJ45 port

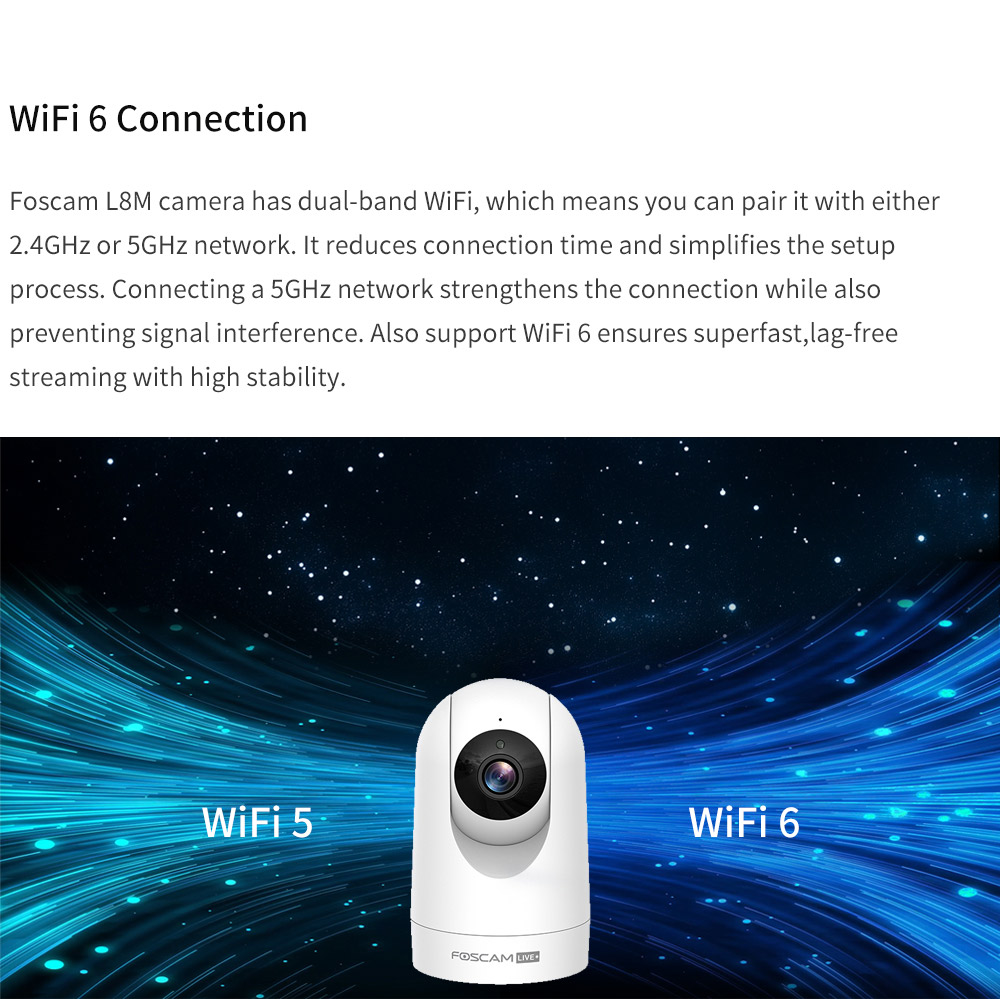

	Wireless Standard	2.4G/5G dual band, IEEE802.11b/g/n/ax (2.4GHz), IEEE802.11a/n/ac/ax(5GHz)
	Remote Access	P2P
	Wireless Setup	Supports Bluetooth connection + QR Code
	Network Protocol	IP, TCP, UDP, SMTP, FTP, DHCP, RTSP，RTMP
	RTMP Supported Platforms	YouTube and Facebook, Twitch
Operating System		Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Other Features	Auto Tracking	Supports Auto tracking
	Motion Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Sound Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Human Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Pet Detection(Dog &Cat)	Alarm via E-Mail, FTP and Foscam app when an event is detected
	WDR	Improve image clarity in complex scenarios
	Zoom	20X digital zoom function
	Storage	Supports max. 512GB Micro SD card, local and FTP storage,Foscam cloud storage
	Intelligent Assistant	Supports Alexa, Google Home
	DORI(For reference only)	Detect (25px/m): 70.7m. Observe (63px/m): 28.1m. Recognise (125px/m): 14.1m. Identify (250px/m): 7.1m.
Power	Power Supply	USB C 5V/2A
	Power Consumption	<10.0W

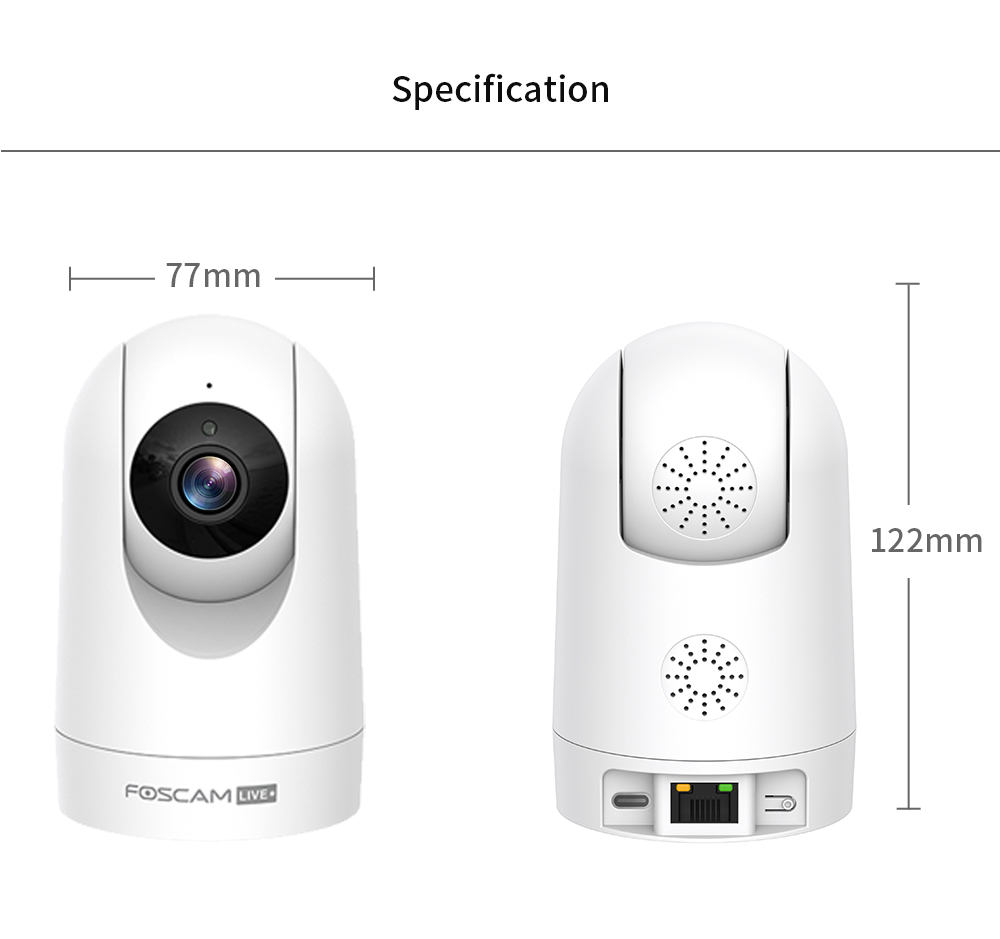

Physical	Dimension(LxWxH)	φ77mm*122mm
	Net Weight	251g
Environment	Operating Temperature	'-20°C ~40° (-4°F ~ 104°F)
	Operating Humidity	20% ~ 85% non-condensing
	Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
	Storage Humidity	0% ~ 90% non-condensing
	Certification	FCC, CE, RoHS, WEEE
