Tech Specs Table

ITEMS		LD8EP
Spotlight	Color Temperature	6500K
Image Sensor	Sensor Type	High Definition Color CMOS Sensor
	Display Resolution	8.0Megapixels(3840*2160)
	Min. Illumination	0 Lux (With IR Illuminator)
Lens	Lens Type	f.3.3mm-10.2mm; F1.6-3.1
	Angle of view	Diagonal: 47.6°~111.3°, Horizontal: 42.7°~95.5°, Vertical: 23°~51.1°
Video	Image Compression	H.264+/H.264
	Image Frame Rate	Max 25fps (8MP), downward adjustable
	Resolution	4K(38402160) 2M/25 fps,1080P(19201080)1M/25fps, 720P(1280*720)1M/15fps
	Stream	Dual stream
	Image Adjustment	The hue, brightness, contrast, saturation and sharpness are adjustable
	Flip image	Flip and mirror
	Infrared Mode	Automatic and manual

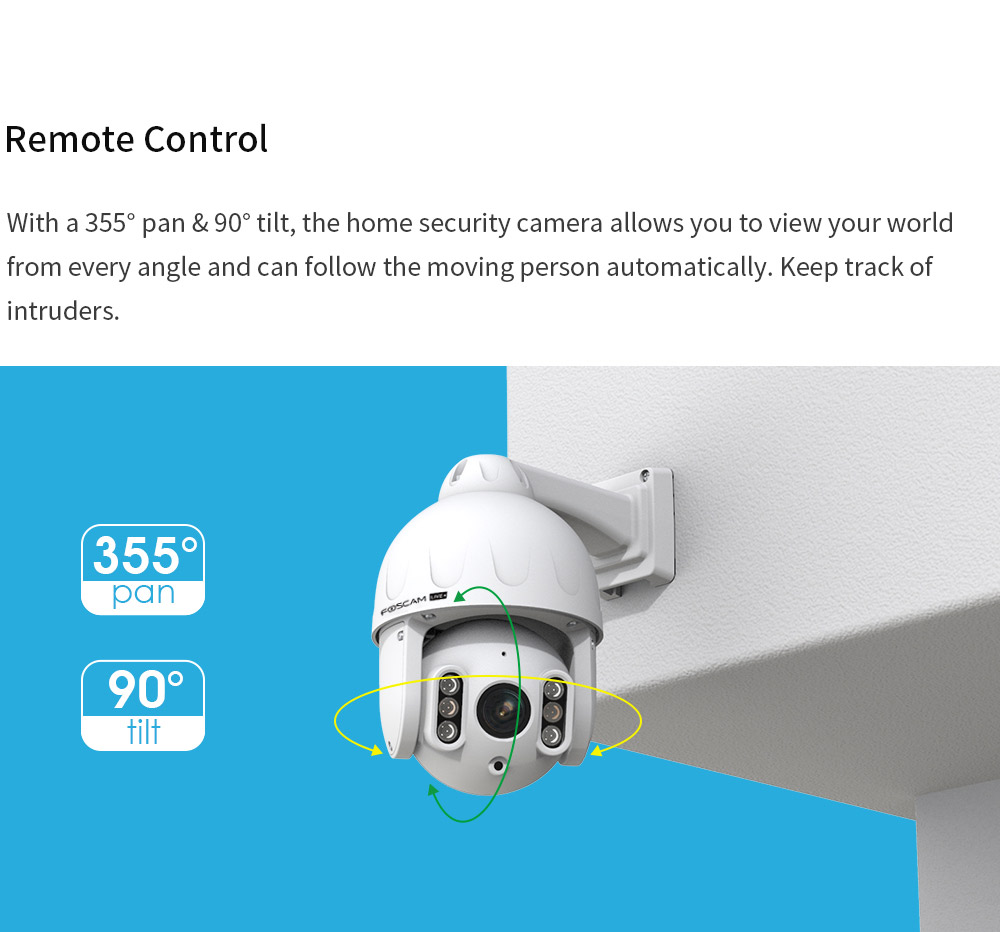

	Pan/Tilt Angle	Pan:355° / Tilt:90°
	Night Visibility	With 4pcs Infrared-LEDs + 2pcs spotlights, night Vision range up to 50 meters
Audio	Input/Output	Built-in mic and speaker, supports full duplex 2-way Audio
	Audio Compression	PCM/AAC
	Siren	Support maximum 120dB alarm siren
Network	Ethernet	One 10/100Mbps RJ45 port
	Remote Access	P2P
	Network Protocol	IP, TCP, UDP, SMTP, FTP, DHCP, RTSP,RTMP
	RTMP Supported Platforms	YouTube and Facebook, Twitch
Operating System		Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Other Features	Auto Tracking	Yes
	Motion Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Sound Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Human Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	Vehicle Detection	Alarm via E-Mail, FTP and Foscam app when an event is detected
	User Accounts	Three levels user role
	HDR	Improve image clarity in complex scenarios

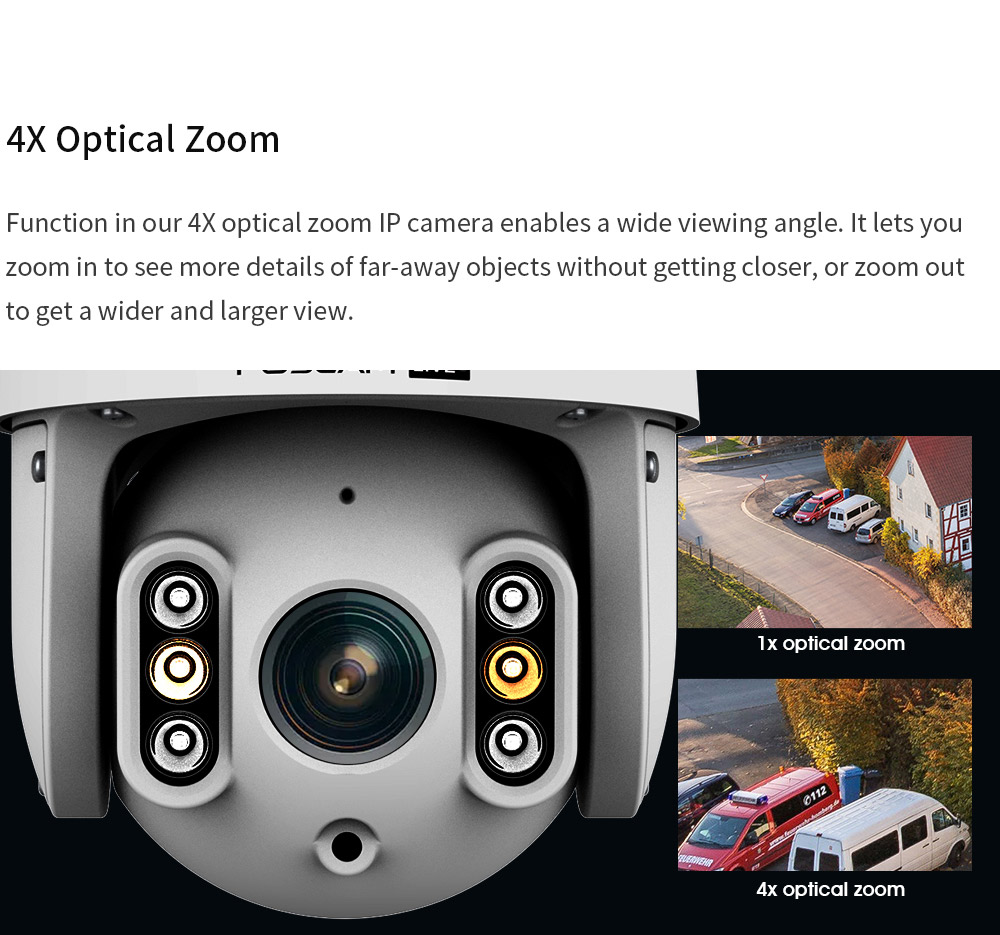

	Zoom	4X optical zoom function
	Storage	Support max. 512GB Micro SD card, local and FTP storage,Foscam cloud storage
	Intelligent Assistant	Supports Alexa, Google Home
	DORI(For reference only)	Detect (25px/m): 79.1m. Observe (63px/m): 31.4m. Recognise (125px/m): 15.8m. Identify (250px/m): 7.9m.
Power	Power Supply	DC 12V/2.0A (Not included)

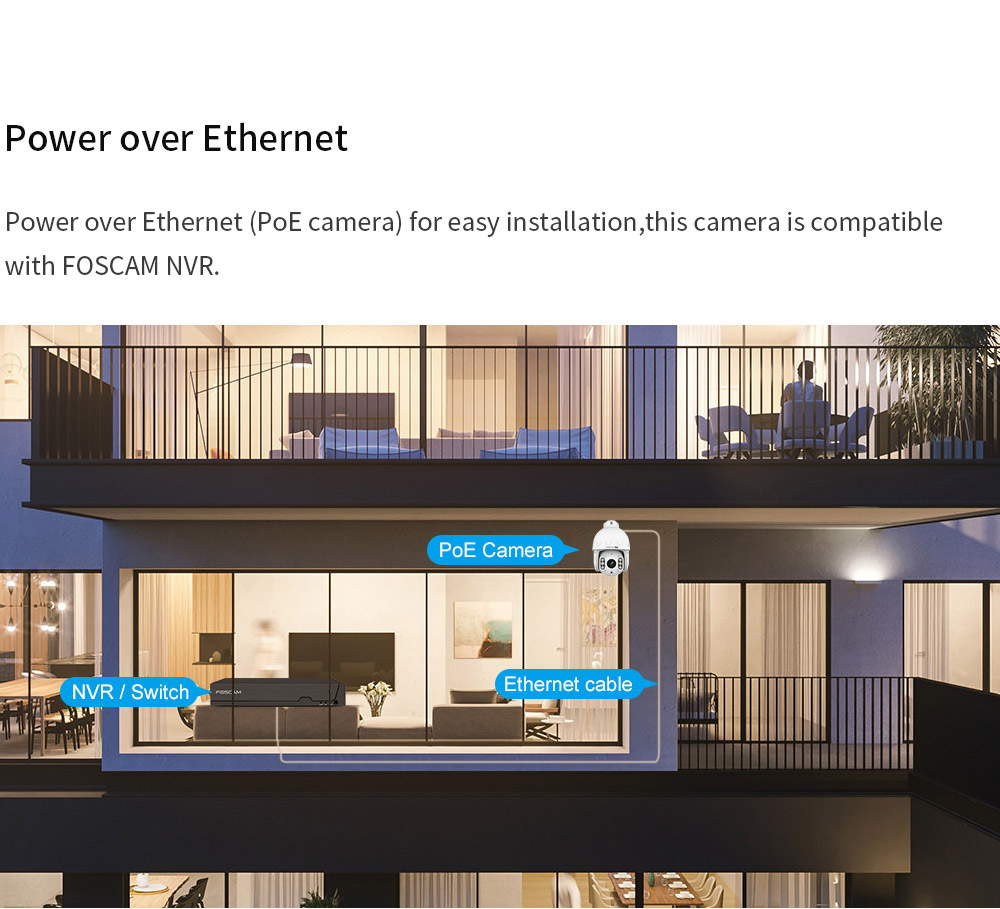

	POE Standard	802.3af
	Power Consumption	20 Watts (Max.)

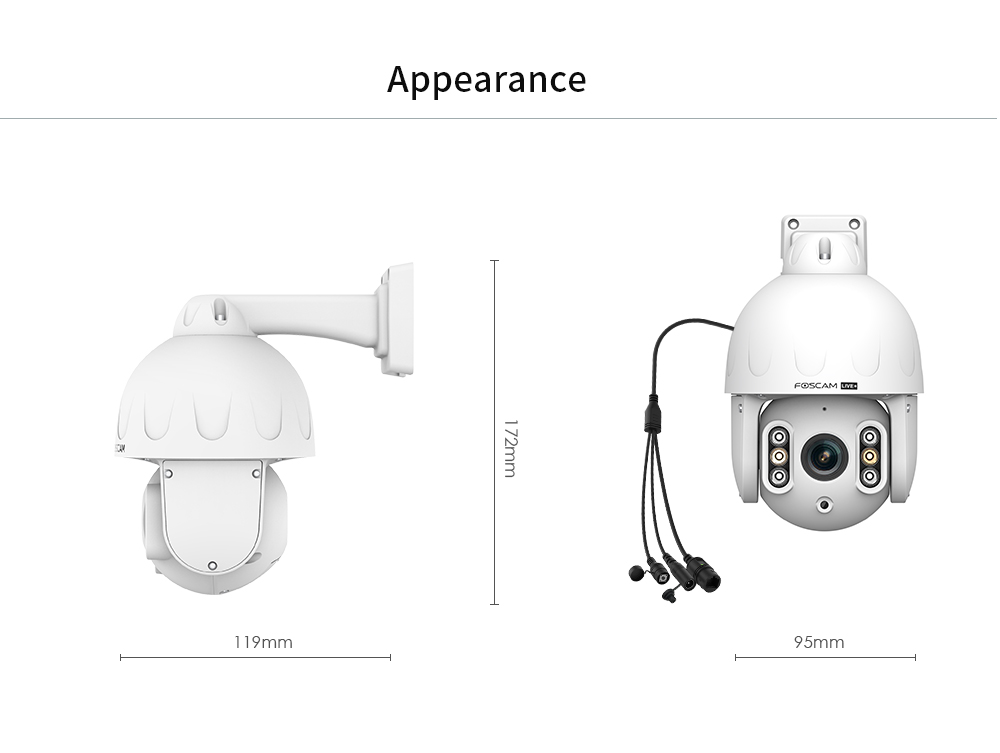

Physical	Dimension(LxWxH)	172mm119mm95mm
	Net Weight	1050g

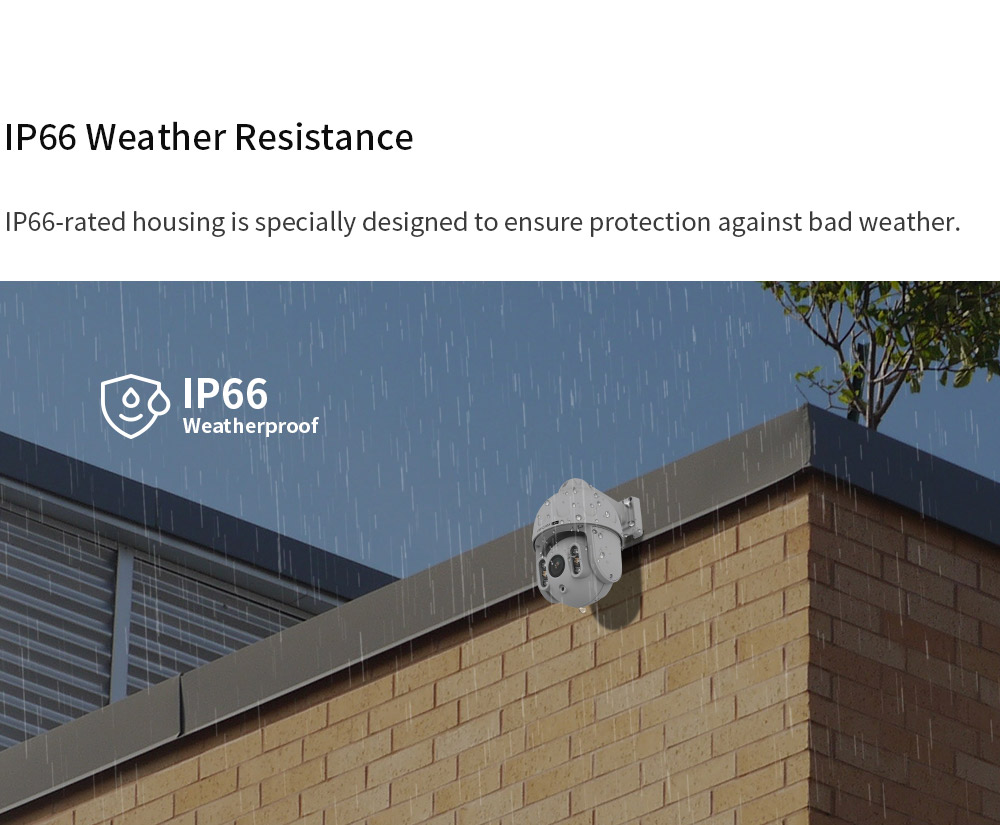

Environment	Waterproof	IP66
	Operating Temperature	-20°C ~ 50° (-4°F ~ 122°F)
	Operating Humidity	20% ~ 85% non-condensing
	Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
	Storage Humidity	0% ~ 90% non-condensing
Certification	FCC, CE, RoHS, WEEE, IP66
